Startseite /Produkte/Eckiges Kontakt-Kugellager/SKF S7013 ACEGA/HCP4A Angular Contact Ball Bearing 65mm Steel

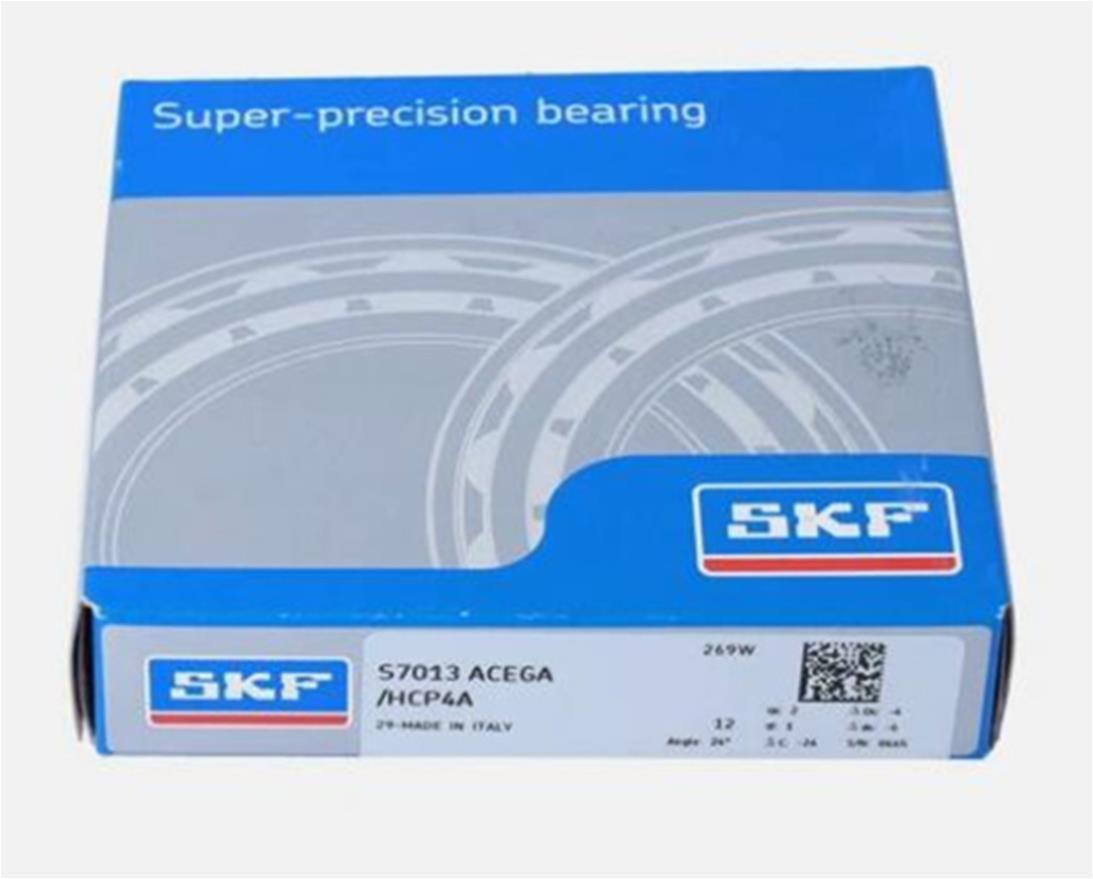

SKF S7013 ACEGA/HCP4A Angular Contact Ball Bearing 65mm Steel

10
MOQ
$300
Preis
SKF S7013 ACEGA/HCP4A Angular Contact Ball Bearing 65mm Steel
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Max.limited speed for Grease lubrication: 7200 R/min
Inner Diameter: 65Mm
Precision grade: P0、P6、P5、P4、P2
Model: S7013 ACEGA/HCP4A
Weight: 0.47kg
Rated static load (Cor): 31.4 KN
Material: Steel
Width: 18 Mm
Hervorheben:

SKF S7013 ACEGA angular contact bearing

,

65mm steel ball bearing

,

HCP4A precision ball bearing
Grundinformation
Place of Origin: China , Sweden, Germany
Markenname: SKF, FAG , INA, LYC, HRB
Zertifizierung: ISO9001-2015/SGS
Model Number: S7013 ACEGA/HCP4A
Zahlung und Versand AGB
Packaging Details: Standard packing
Delivery Time: based on quantity
Payment Terms: T/T in advance
Supply Ability: 7.5KKPCS/Month
Produkt-Beschreibung
SKF S7013 ACEGA/HCP4A Angular-Contact Ball Bearing
Angular 25 Degree Martensitic Stainless Steel
Product Specifications
Attribute Value
Max. limited speed for Grease lubrication 7200 R/min
Inner Diameter 65 mm
Precision grade P0, P6, P5, P4, P2
Model S7013 ACEGA/HCP4A
Weight 0.47 kg
Rated static load (Cor) 31.4 KN
Material Steel
Width 18 mm
Product Overview
The SKF S7013 ACEGA/HCP4A is a high-performance angular contact ball bearing designed to support combined radial and axial loads. Featuring sealed protection and constructed from durable steel, this bearing offers exceptional longevity and reliability in demanding applications.
Key Features
  • Sealed design for component protection
  • Steel or brass cage options
  • Rated dynamic load (Cr) of 33.7 KN
  • Maximum speed of 9000 R/min (oil lubrication)
  • Precision grades available from P0 to P2
Technical Parameters
Parameter Specification
Lubrication Grease, Oil
Clearance C5, C4, C3, C0, C2
Outer Diameter 100 mm
Max. speed (oil) 9000 R/min
Max. speed (grease) 7200 R/min
Seals Sealed
Applications
This angular contact ball bearing is ideal for high-speed, high-precision applications including machine tools, robotics, and automotive components. Its ability to handle both radial and axial loads simultaneously makes it perfect for applications requiring high rigidity and accuracy.
Ordering Information
Brand Options SKF, FAG, INA, LYC, HRB
Minimum Order Quantity 10 units
Price $300.00
Delivery Time Based on quantity
Supply Ability 7.5KKPCS/Month
Support & Services
Our comprehensive technical support includes product selection assistance, installation guidance, troubleshooting, and maintenance recommendations. We also offer training programs to help maximize bearing performance and longevity.
Packaging & Shipping
Each bearing is carefully packaged in protective casing to ensure safe delivery. We use trusted courier services and provide tracking numbers for all shipments.
Frequently Asked Questions
What certifications does this bearing have?
ISO9001-2015/SGS certified.
What is the place of origin?
Manufactured in China, Germany, and Sweden.
What precision grades are available?
P0, P6, P5, P4, and P2 precision grades.
