Startseite /Produkte/Eckiges Kontakt-Kugellager/FAG 7014C-T-P4S-UL Angular Contact Ball Bearing 70x110x20mm 0.66Kg

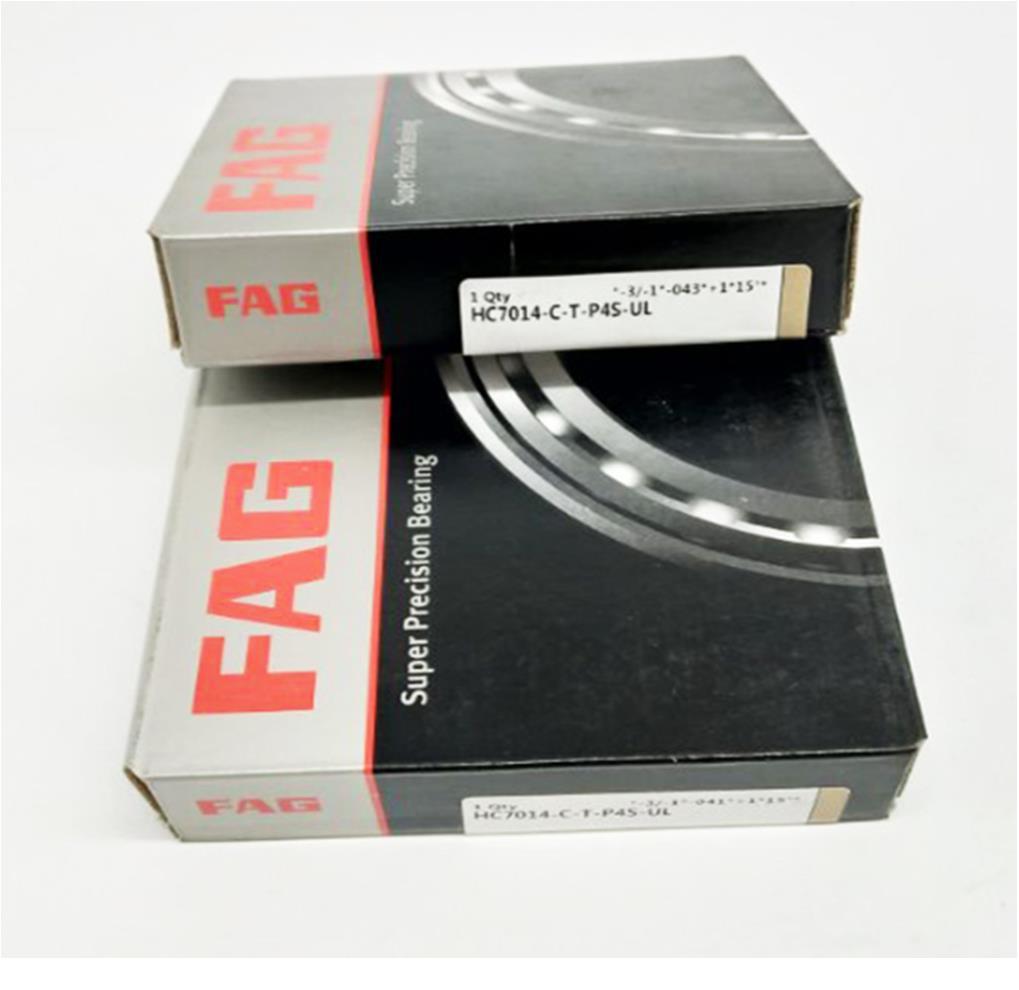

FAG 7014C-T-P4S-UL Angular Contact Ball Bearing 70x110x20mm 0.66Kg

10
MOQ
$35.50
Preis
FAG 7014C-T-P4S-UL Angular Contact Ball Bearing 70x110x20mm 0.66Kg
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Dynamische Last bewertet (CR): 46.9kn
Siegel: Offen
Schmierung: Fett, Öl
Präzisionsnote: P0 、 p6 、 p5 、 p4 、 p2
NW: 0,66 kg
Max. Begrenzte Geschwindigkeit für die Ölschmierung: 12000 R/min
Max.Limitierte Geschwindigkeit für die Schmierfettschmierung: 9200 R/min
Käfig: Stahl oder Messing
Hervorheben:

FAG 7014C angular contact ball bearing

,

70x110x20mm angular contact bearing

,

angular contact ball bearing with warranty
Grundinformation
Place of Origin: China
Markenname: SKF, FAG , INA, LYC, HRB
Zertifizierung: ISO9001-2015/SGS
Modellnummer: 7014C-T-P4S-ul
Zahlung und Versand AGB
Packaging Details: Standard packing
Delivery Time: based on quantity
Payment Terms: T/T in advance
Supply Ability: 7.5KKPCS/Month
Produkt-Beschreibung
FAG 7014C-T-P4S-UL Angular Contact Ball Bearing
70*110*20mm | N.W. 0.66 Kg | Precision Performance Bearing
The FAG 7014C-T-P4S-UL is a high-precision angular contact ball bearing designed for demanding applications requiring both radial and axial load capacity. With dimensions of 70*110*20mm and a net weight of 0.66 kg, this bearing offers exceptional performance in high-speed rotational applications.
Key Features
  • Precision grade options: P0, P6, P5, P4, P2
  • Multiple clearance options: C5, C4, C3, C0, C2
  • Maximum speed: 12000 R/min (oil lubrication), 9200 R/min (grease)
  • Rated static load (Cor): 43.0 kN
  • Material: High-quality steel construction
  • Sealed design for contamination protection
  • Available with steel or brass cage
Technical Specifications
Parameter Value
Inner Diameter 70 mm
Outer Diameter 110 mm
Width 20 mm
Net Weight 0.66 kg
Precision Grade P0, P6, P5, P4, P2
Clearance Options C5, C4, C3, C0, C2
Rated Static Load (Cor) 43.0 kN
Applications
  1. Industrial Machinery: Precision equipment requiring high-speed rotation and axial load support
  2. Automotive Systems: Wheel hubs, transmissions, and differential components
  3. Aerospace Components: Critical rotating assemblies demanding reliability
  4. Robotics: High-accuracy motion control systems
  5. Renewable Energy: Wind turbine and solar power system components
Ordering Information
Detail Information
Brand Options SKF, FAG, INA, LYC, HRB
Model Number 7014C-T-P4S-UL
Certification ISO9001-2015/SGS
Minimum Order 10 units
Delivery Time Based on quantity
Monthly Capacity 7.5 million units
Frequently Asked Questions
What is the maximum speed for this bearing?
The maximum speed is 12000 R/min with oil lubrication and 9200 R/min with grease lubrication.
What clearance options are available?
Available clearance options include C5, C4, C3, C0, and C2 to match specific application requirements.
What is the minimum order quantity?
The minimum order quantity is 10 units, with pricing negotiable based on volume.
Größe und Tag:

Stahlwinkelkontaktkugellager

Drehspindel Winkelkontakt Kugellager

Stahl mit kugelförmigem Winkellager
